EMBER / WAVE R/S BOX

EMBER / WAVE R/S BOX Our ultra-light compact Freefly Ember and WAVE R/S trigger box features a 2pin 0B power input, a Fischer 3 R/S port with power passthrough, a JST 6 jack, an M3 screw (can be mounted on either side) for mounting directly to the camera, and a 8" JST 6 to JST 6 GPIO trigger to Ember / Wave cable.   This trigger box works with every major FIZ on the market (Arri, RT Motion/Teradek, C-Motion, Preston, Nucleus, etc)

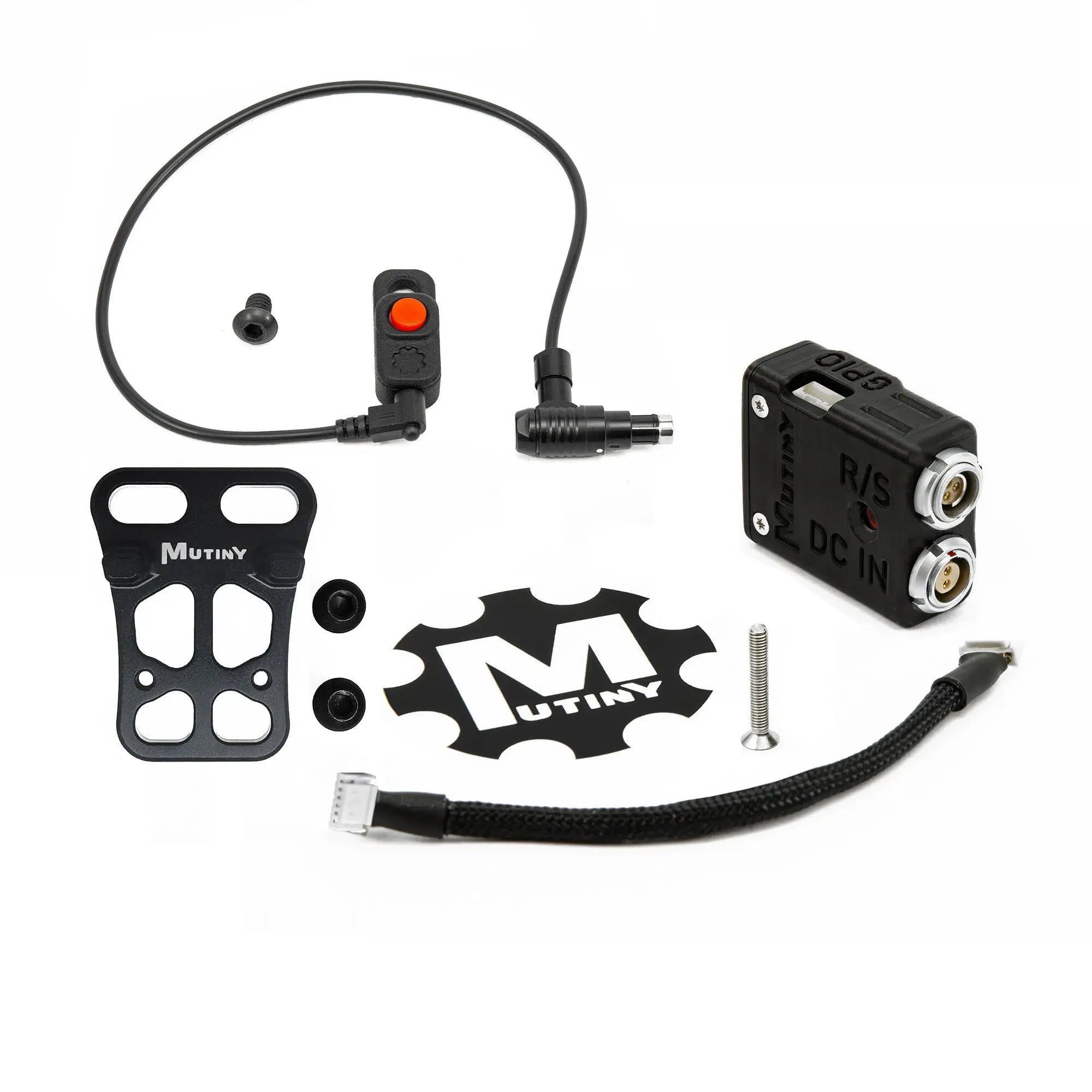

We also offer the Ember / WAVE R/S trigger box bundled with our famous Bolt-On V2 R/S record button with 12" Fischer 3 right angle cable and 1/4-20 mounting screw.

Size: 1.5" (40.51mm) x 1.2" (30.73mm) x 0.5" (15.18mm)

Weight: 0.9oz

Voltage: 4.5-24v DC input - passthrough to Fischer 3 R/S.  Ember gets 3.3v regulated on GPIO.

Included:  Reversible mounting bracket, 8" GPIO JST 6 cable, 2x 1/4-20 and M3 screws.

Need a power cable?  Check out some of our offerings here
