TC-A TIMECODE + AUDIO BREAKOUT
TC-A TIMECODE + AUDIO BREAKOUT
$140.00
TC-A TIMECODE + AUDIO BREAKOUT
NOTE: SHIPPING NOV 10TH

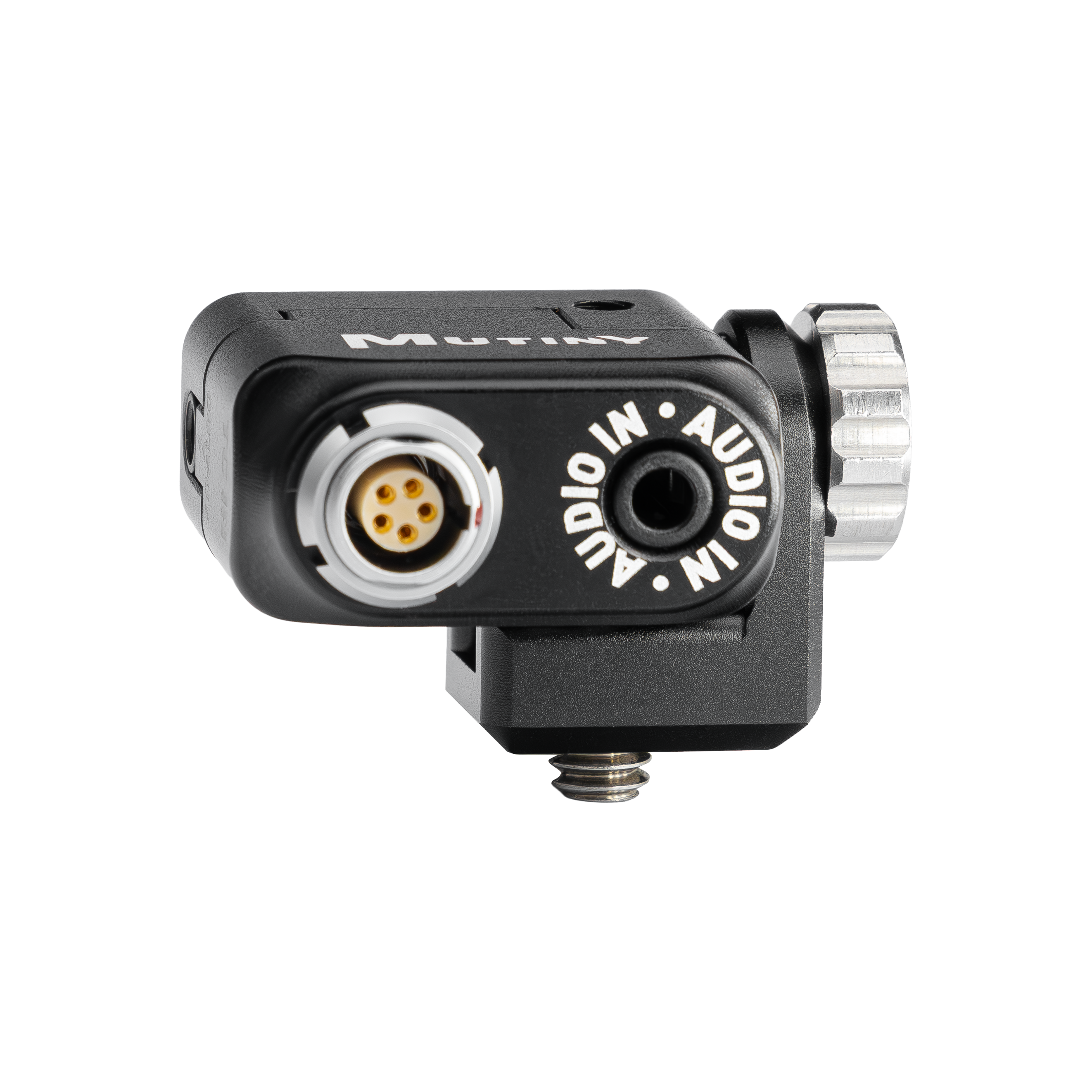

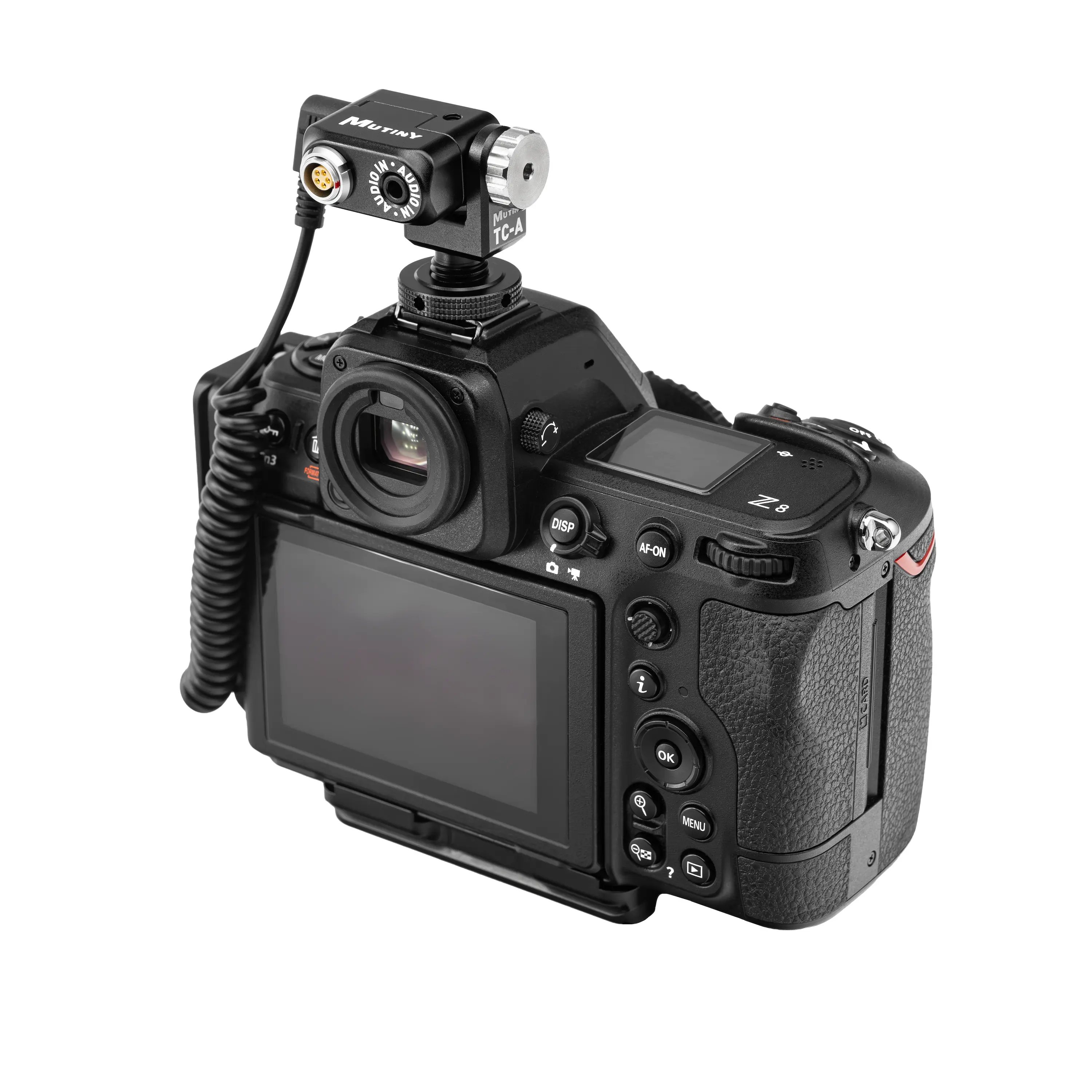

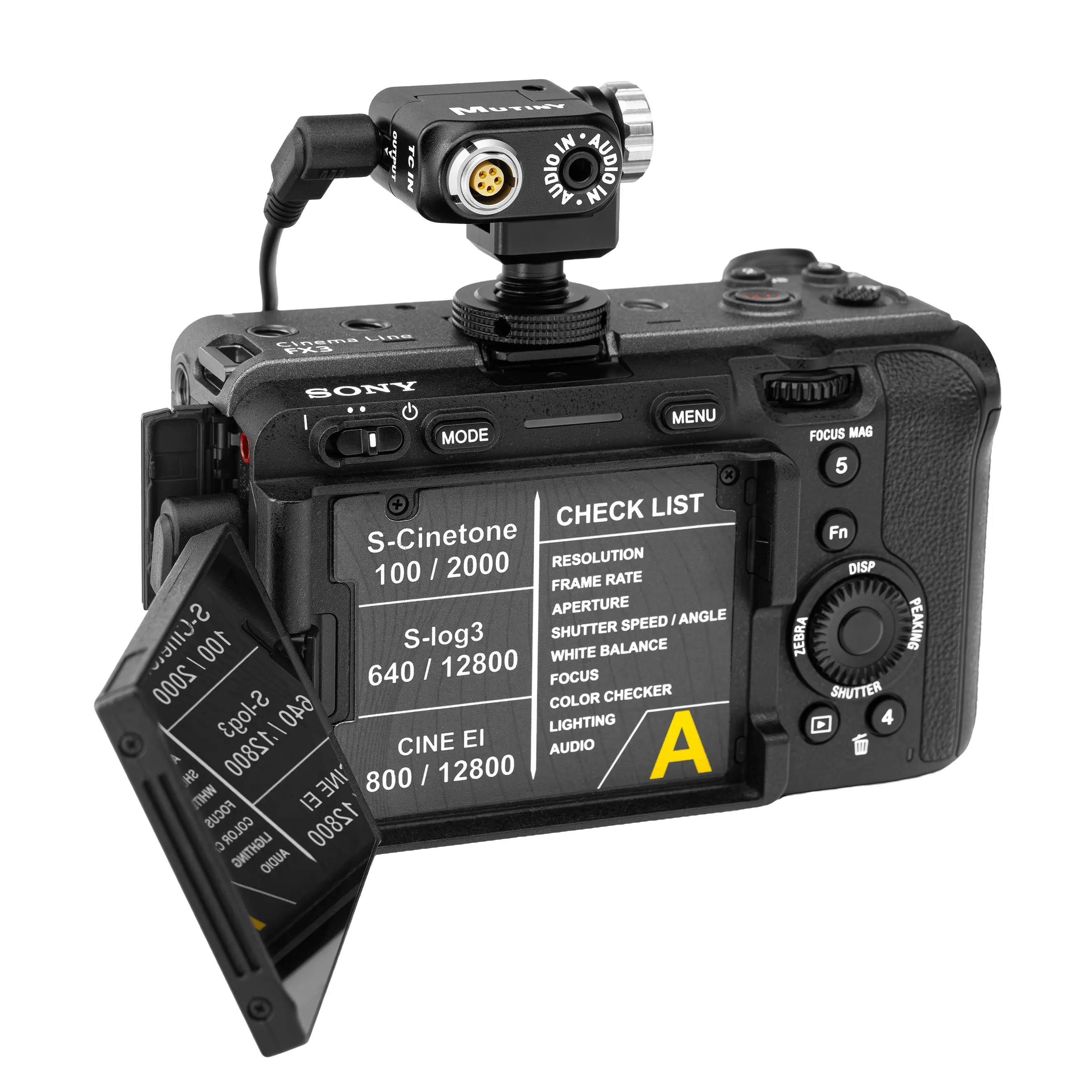

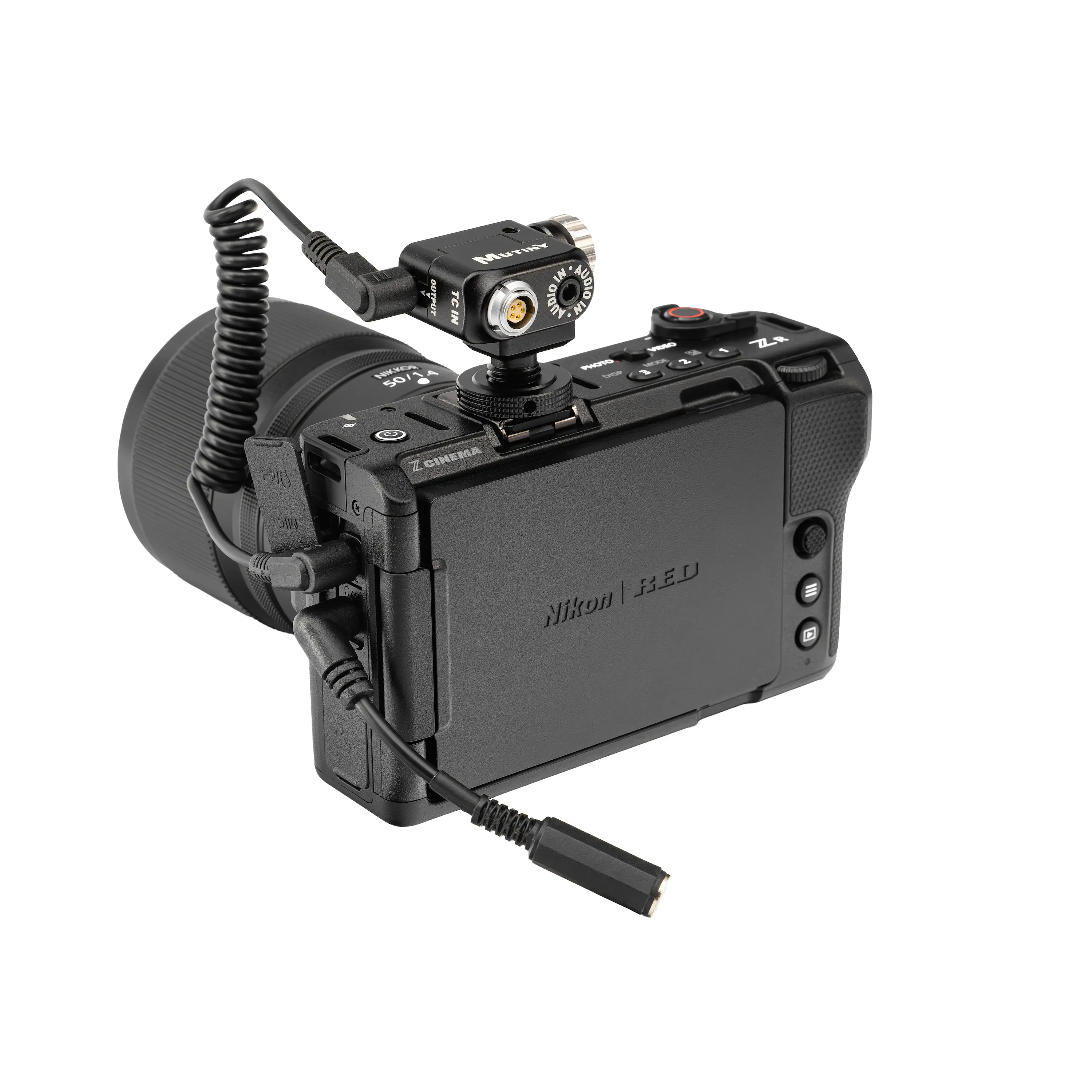

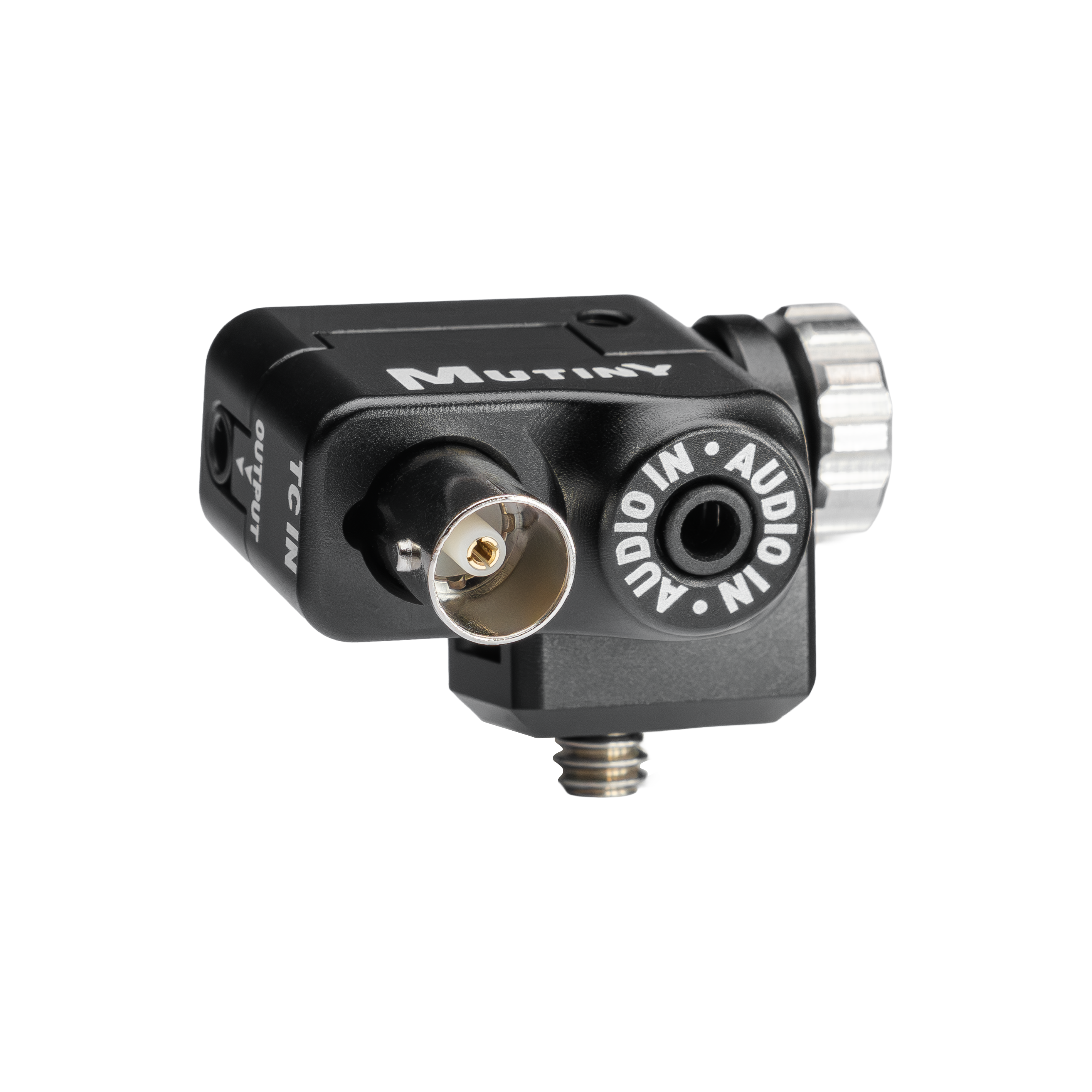

TC-A TIMECODE + AUDIO BREAKOUT is for any mirrorless camera that has a mic in jack like the Nikon ZR, Z8, Z7, SONY FX3, FX2, FX30, A7SIII, etc. It allows you to use a Deity (A-OUT: Outputs Mic level timecode) or Tentacle Sync Timecode generator to lay down LTC timecode on the left audio channel and allows audio on the right channel.
The TC-A can be mounted horizontally or vertically with 3 different mounting holes.
We include a dual mono TRS 3.5mm (1/8th) male to TRS 3.5mm (1/8th) female headphone adapter cable so you are only monitoring audio (right) and not the high pitch timecode channel (left). This dual mono adapter gives you audio in both ears versus just the right side.

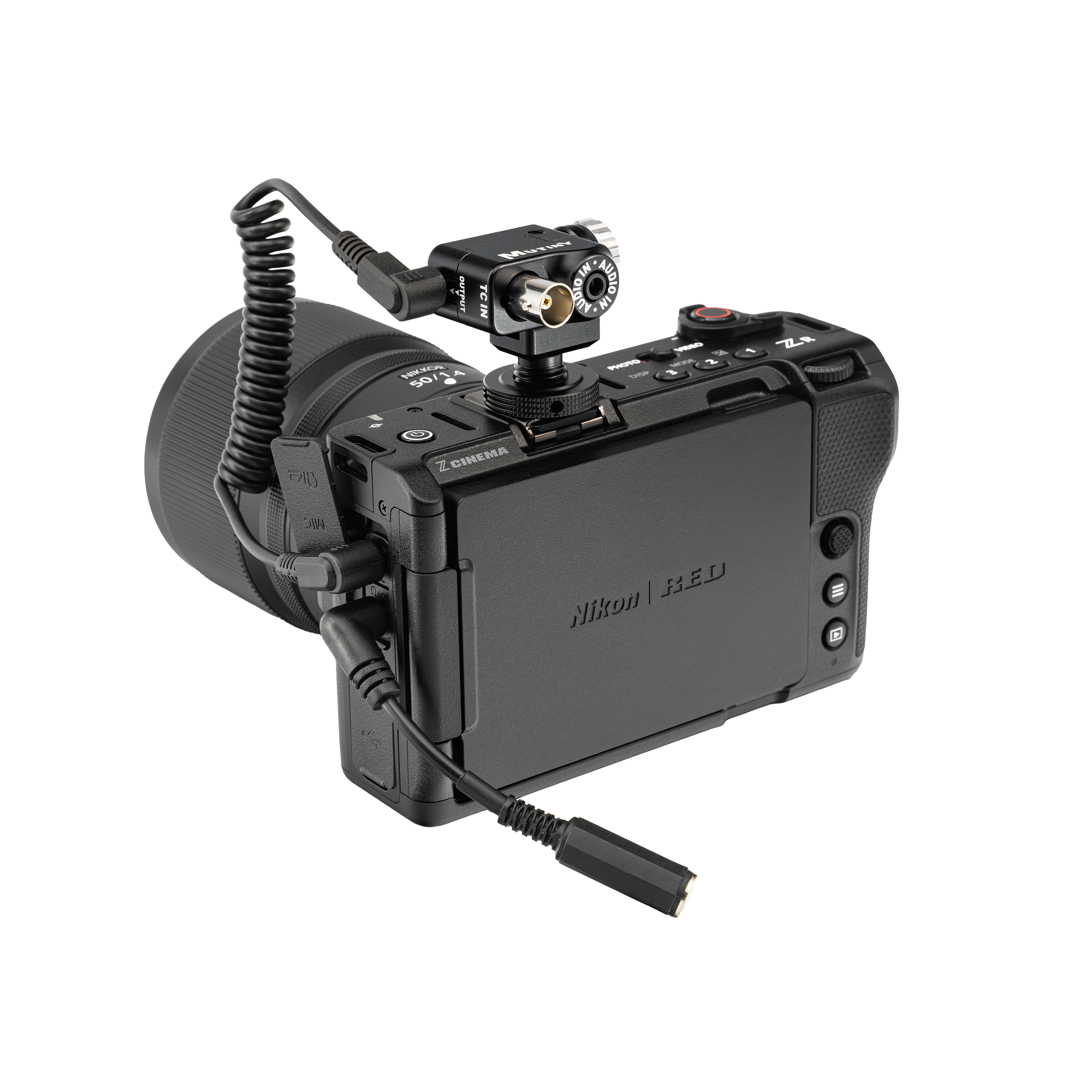

Available in BNC and 5pin Timecode versions

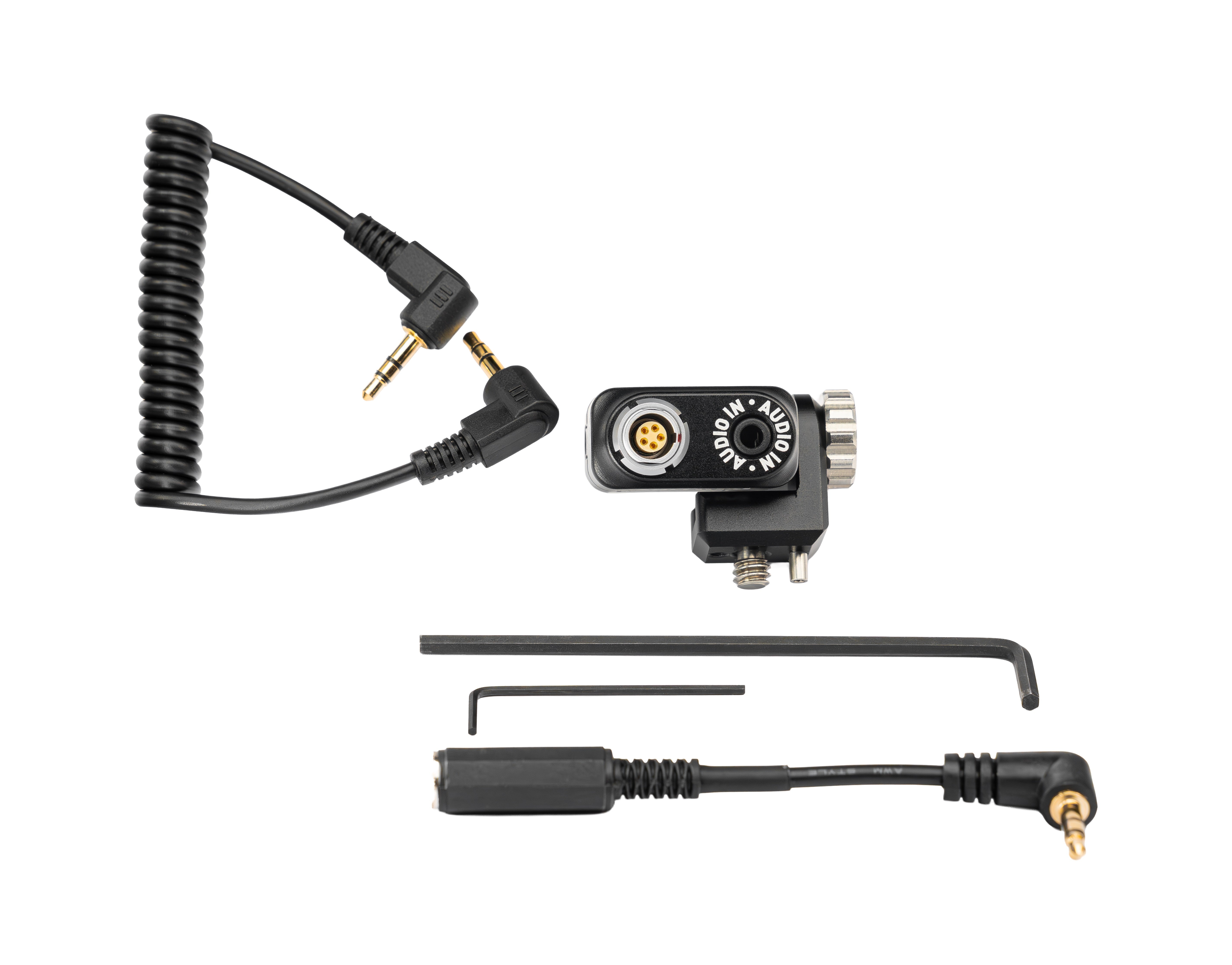

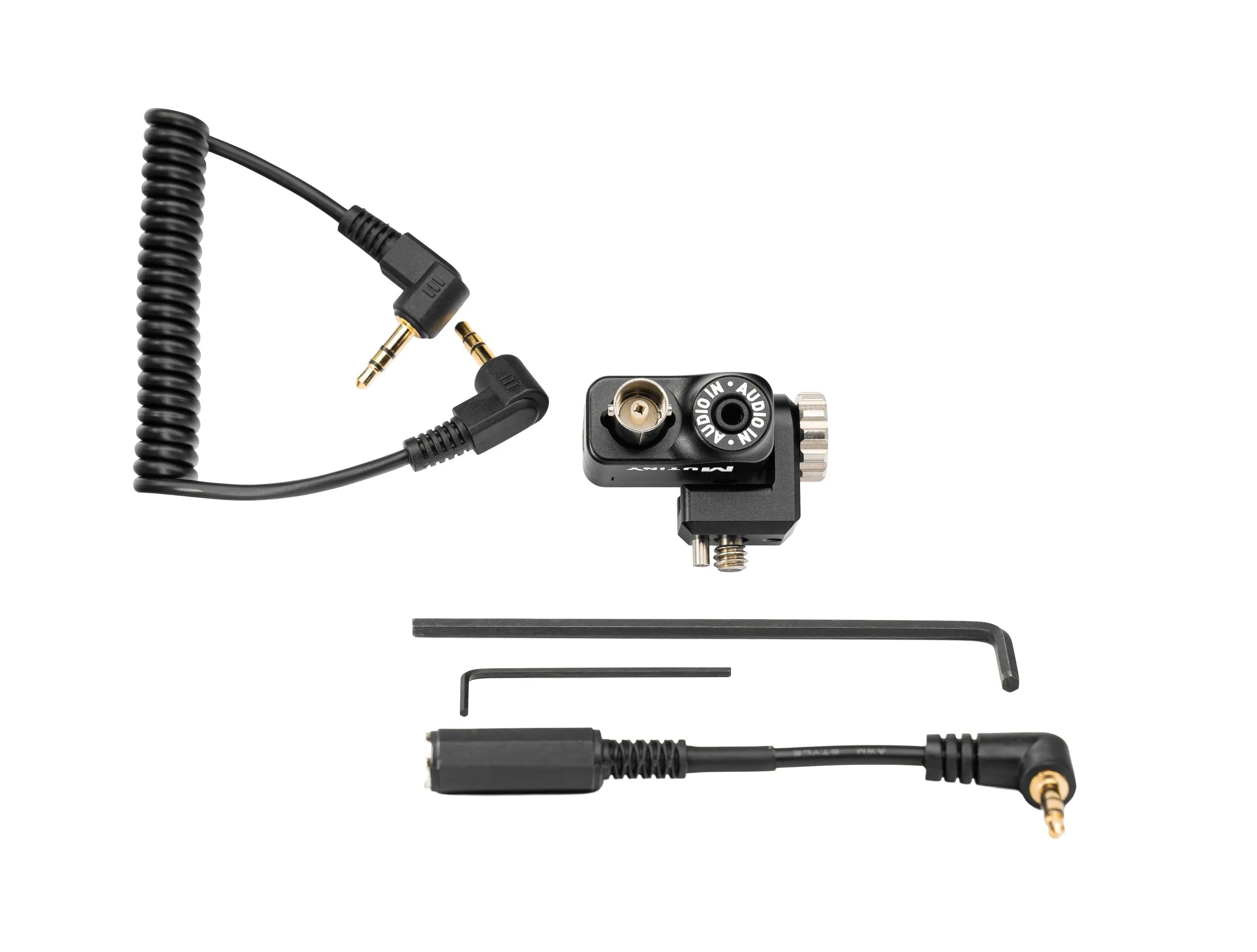

INCLUDES:
TC-A in BNC or 5pin with adjustable mounting bracket

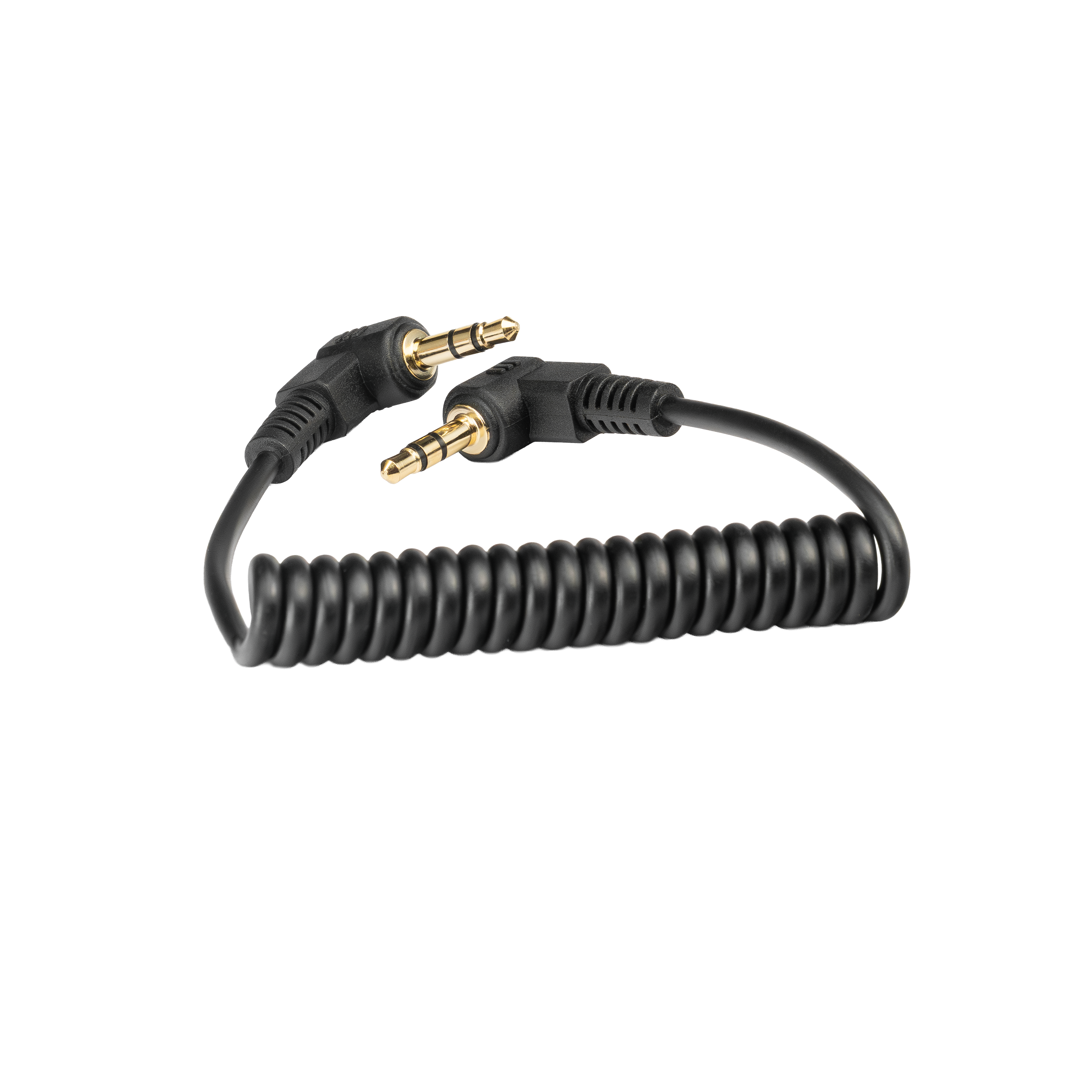

Coiled 3.5mm to 3.5mm TRS right angle to right angle output cable (goes to the mic in jack on the ZR)

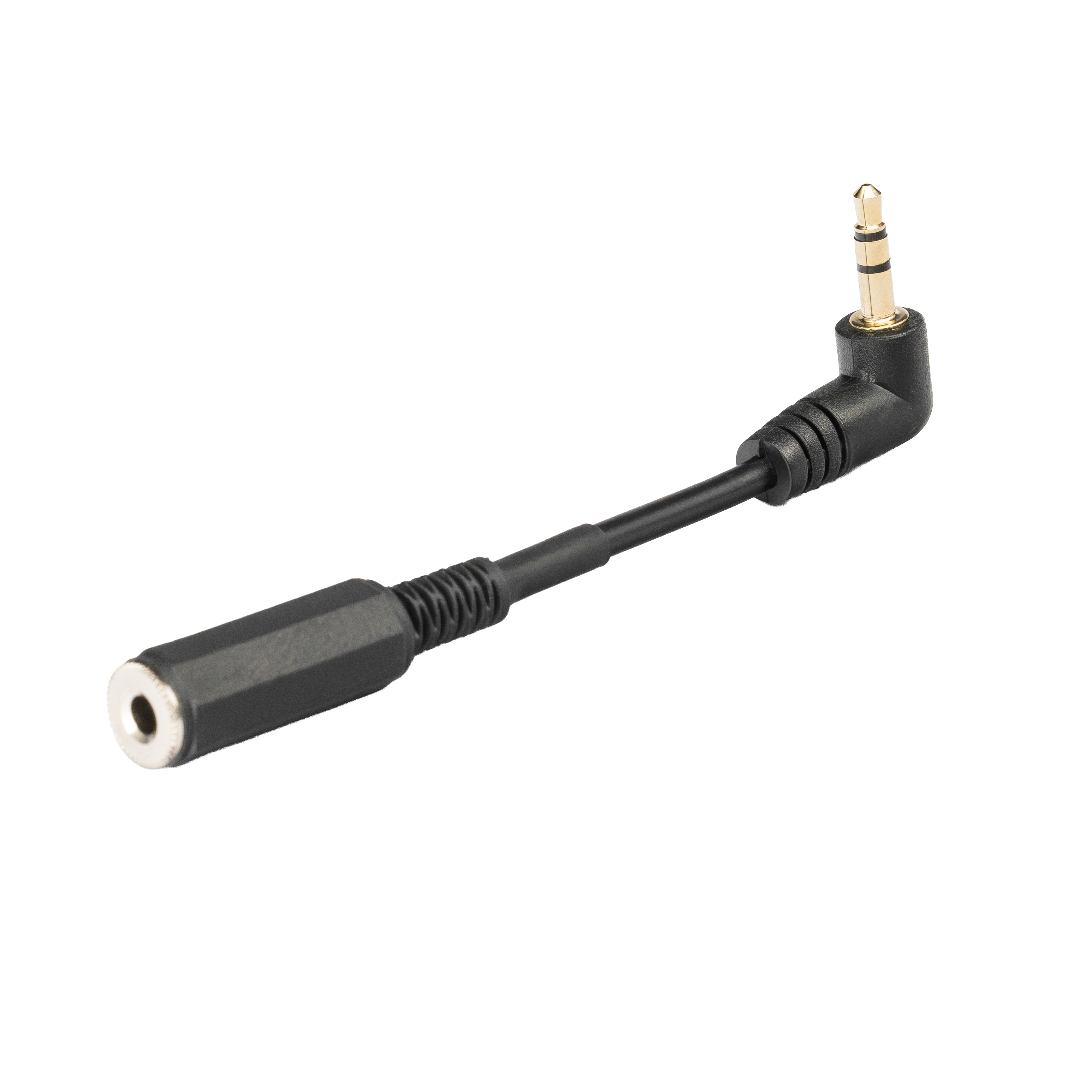

Headphone adapter cable 3.5mm TRS male right angle to dual mono TRS 3.5mm female jack

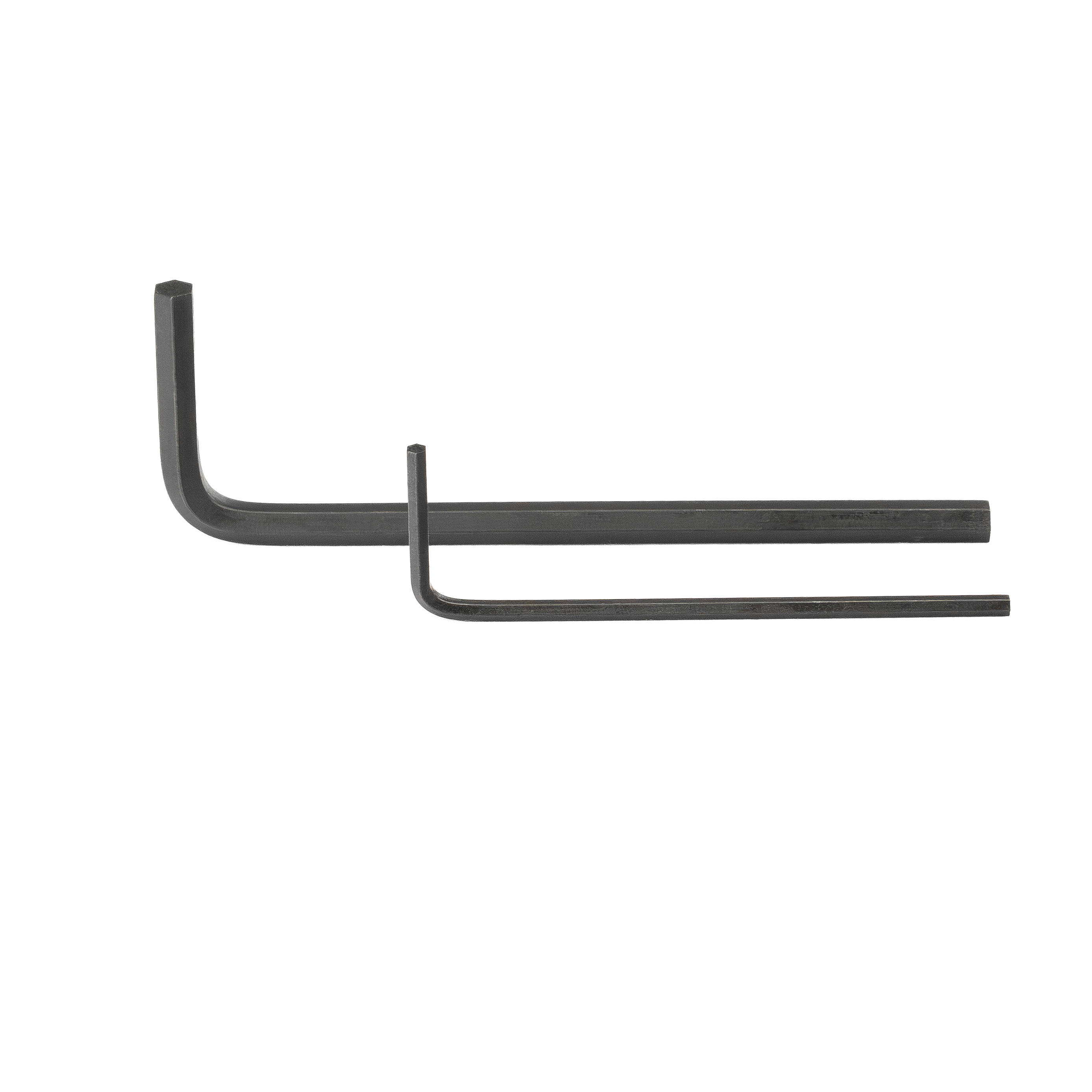

Allen keys for locking pin and mounting the unit.
SPECIFICATIONS:
Horizontal or vertically mounting capability. Mounting via 1/4-20 with removable locating pin for both standards. Mounting via optional 1/4-20 to 3/8-16 adapter
Timecode via 5pin or BNC (depending on version chosen) lays down as TC audio on the Left Channel. This will also do LTC on a certain camera in Jan via a firmware update.
Audio via 3.5mm TRS is laid down as Audio on the Right Channel
Headphone adapter cable monitors right channel as dual mono so you don't hear the timecode track.
Weight: 1.7 oz
Measurements: 42.75mm wide x 27mm tall including mounting bracket (excluding screw and locating pin) x 32mm deep for BNC version 31mm deep for 5pin version
