TC-R/S Breakout for FX3 / FX30 / A7S III

TC-R/S Breakout for FX3 / FX30 / A7S III

TC-R/S-5P

VERSION
OPTIONS
$125.00 USD
$125.00 USD
Sale Sold out
Shipping calculated at checkout.

TC-R/S Breakout for FX3 / FX30 / A7S III

NOTE: TC-R/S 5pin version is sold out.  New units will ship on approximately Nov 26th.  BNC versions are available now.

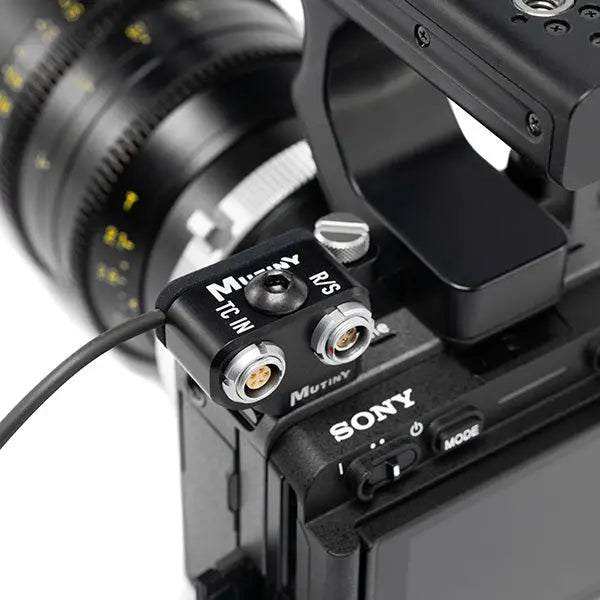

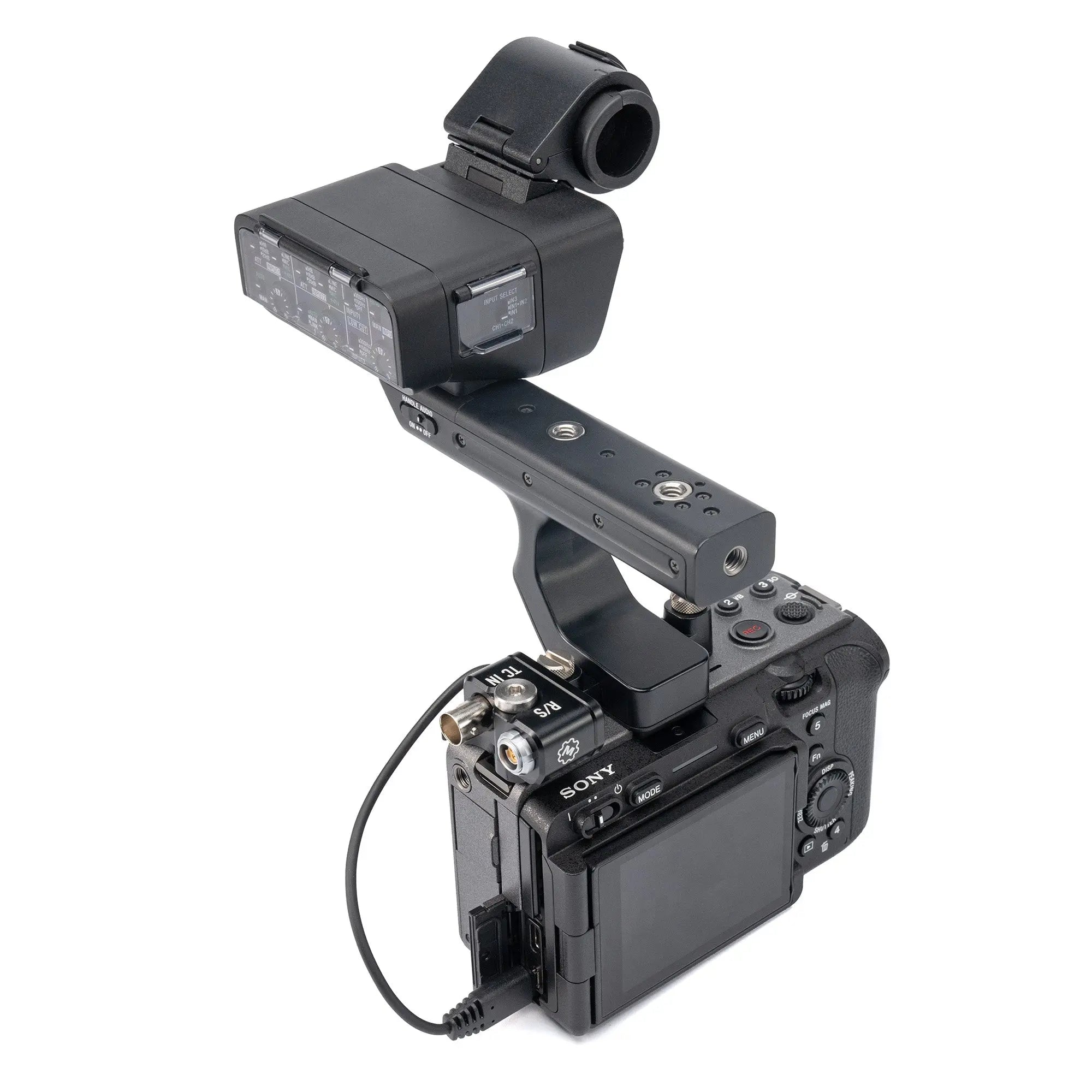

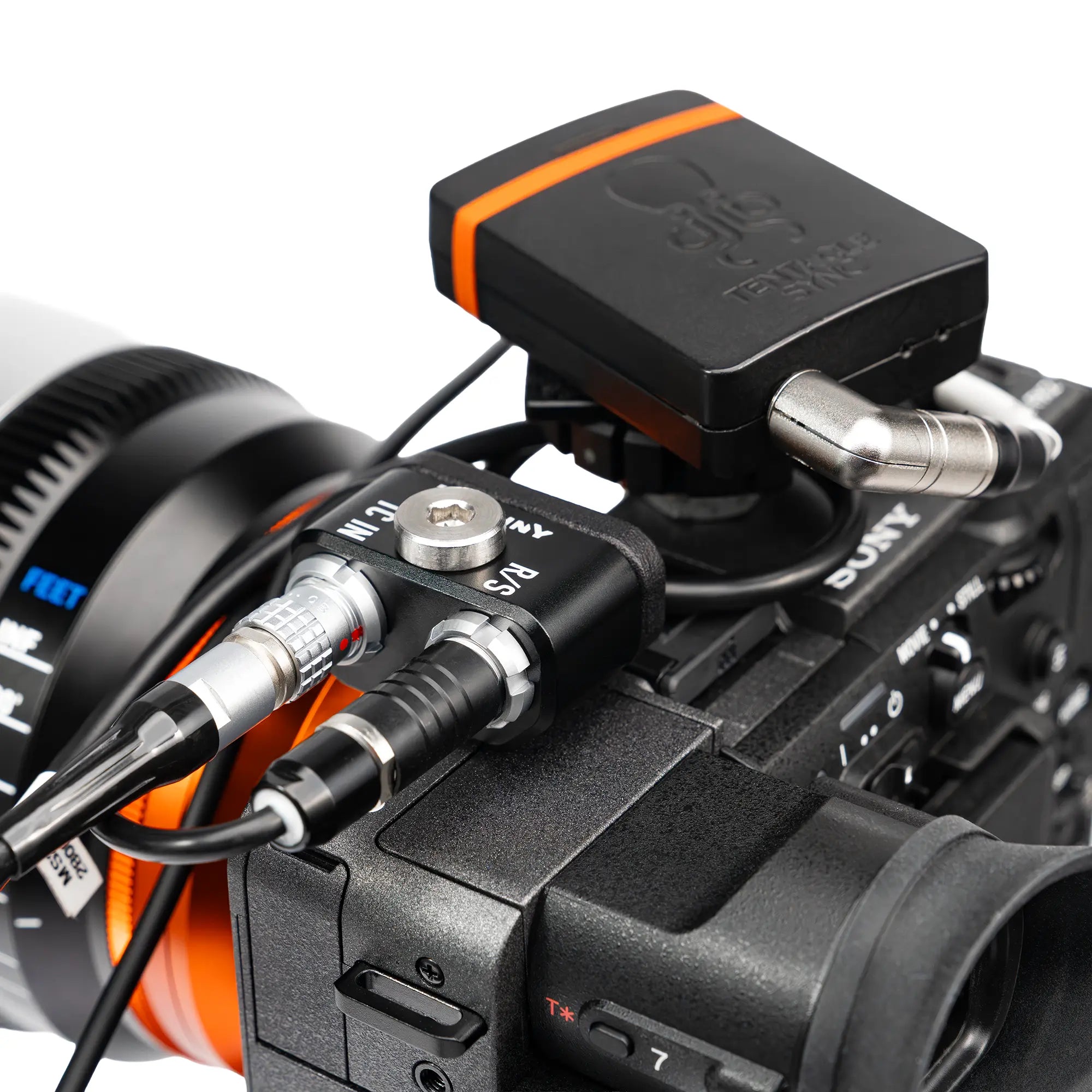

TC-R/S for Sony FX3, FX30 and A7S III (with latest firmware) camera, feeds Timecode IN and R/S (remote triggering) via the multi-terminal (Multiport). Works with every FIZ wireless follow focus system (Preston, Arri, C-Motion, Nucleus, Heden, etc) as well as every timecode generator (Tentacle, Deity, Deneke, Ambient, etc). TC-R/S should trigger most sony mirrorless cameras in video mode but timecode will not work for A7S series (except mark III with latest firmware) , A9 series, A7R series etc.

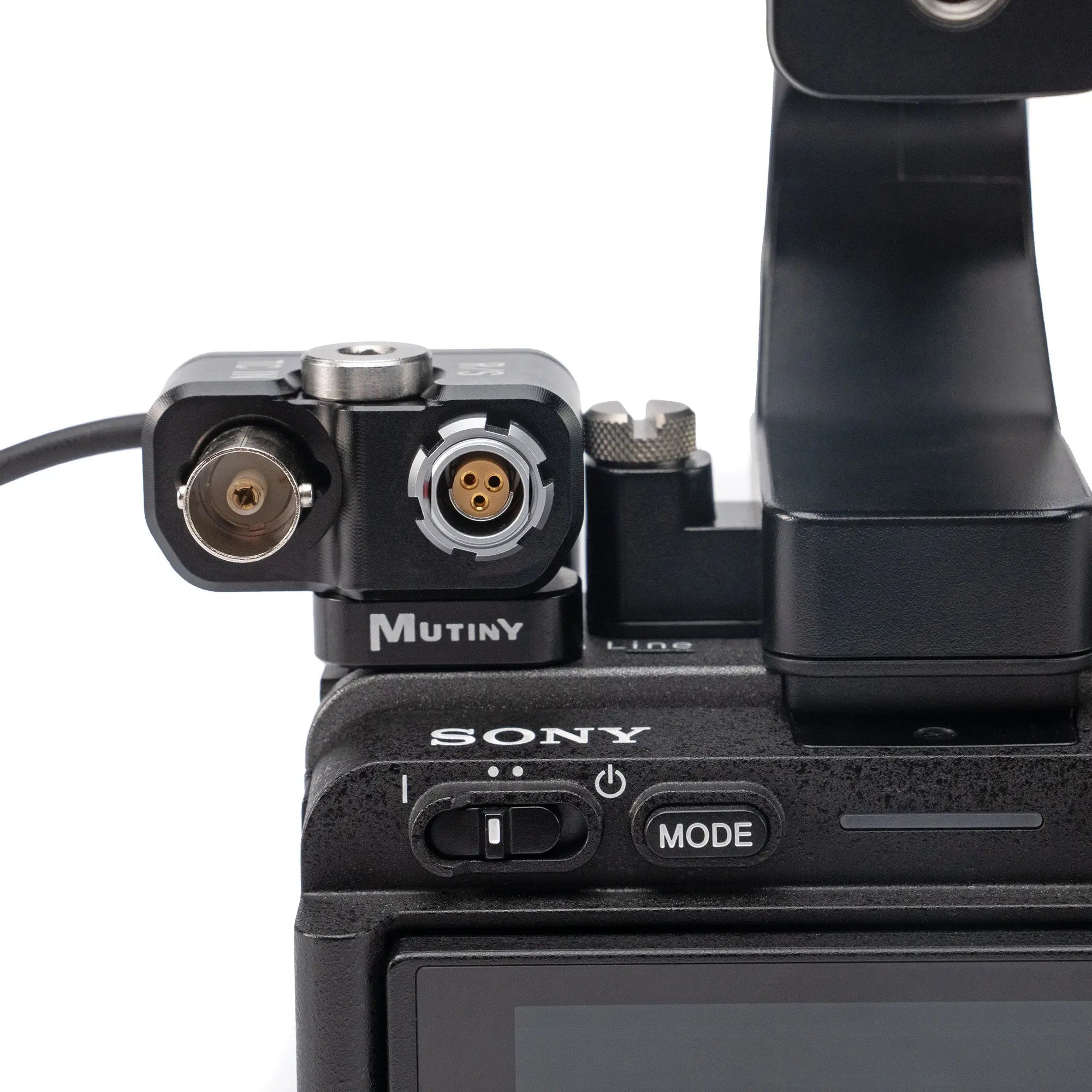

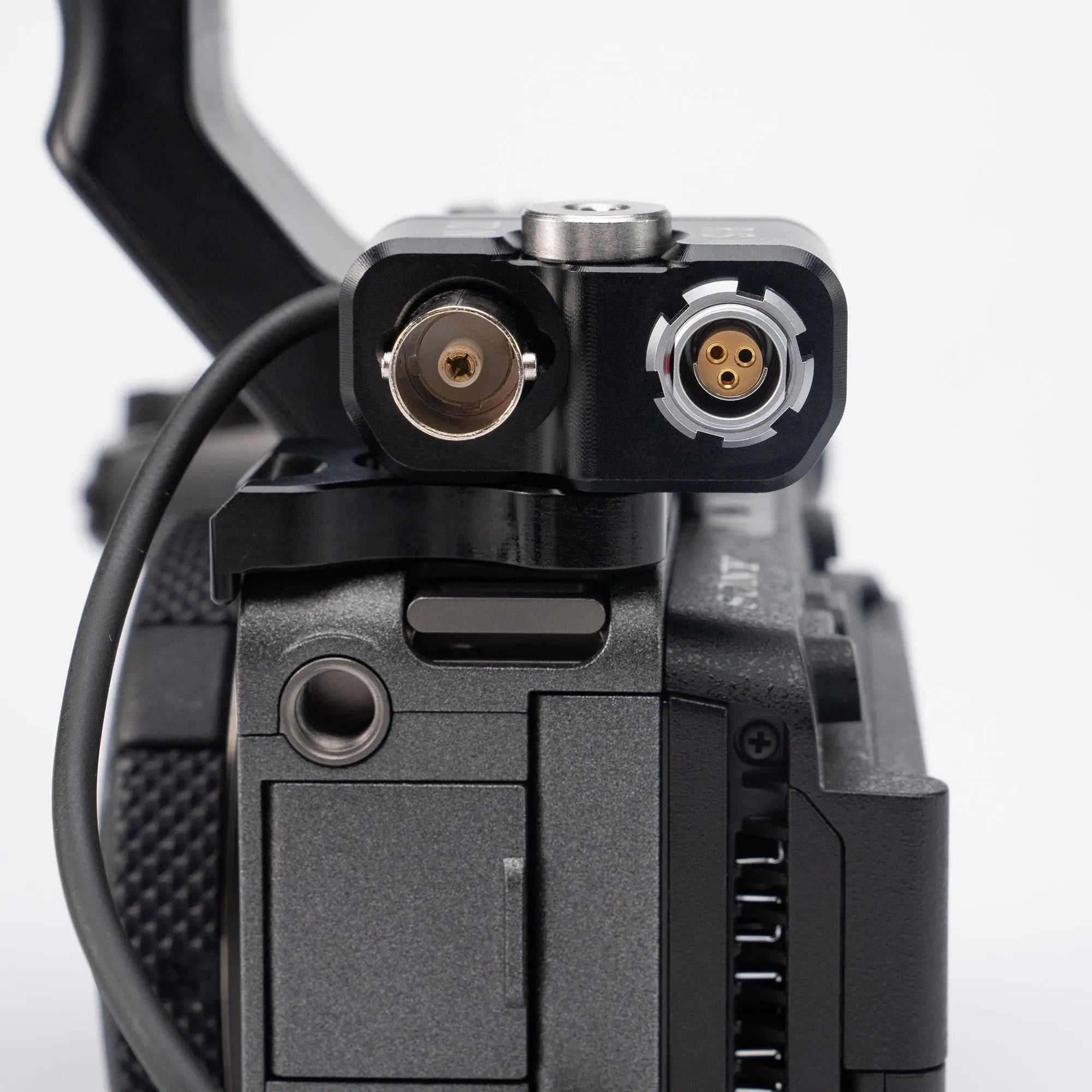

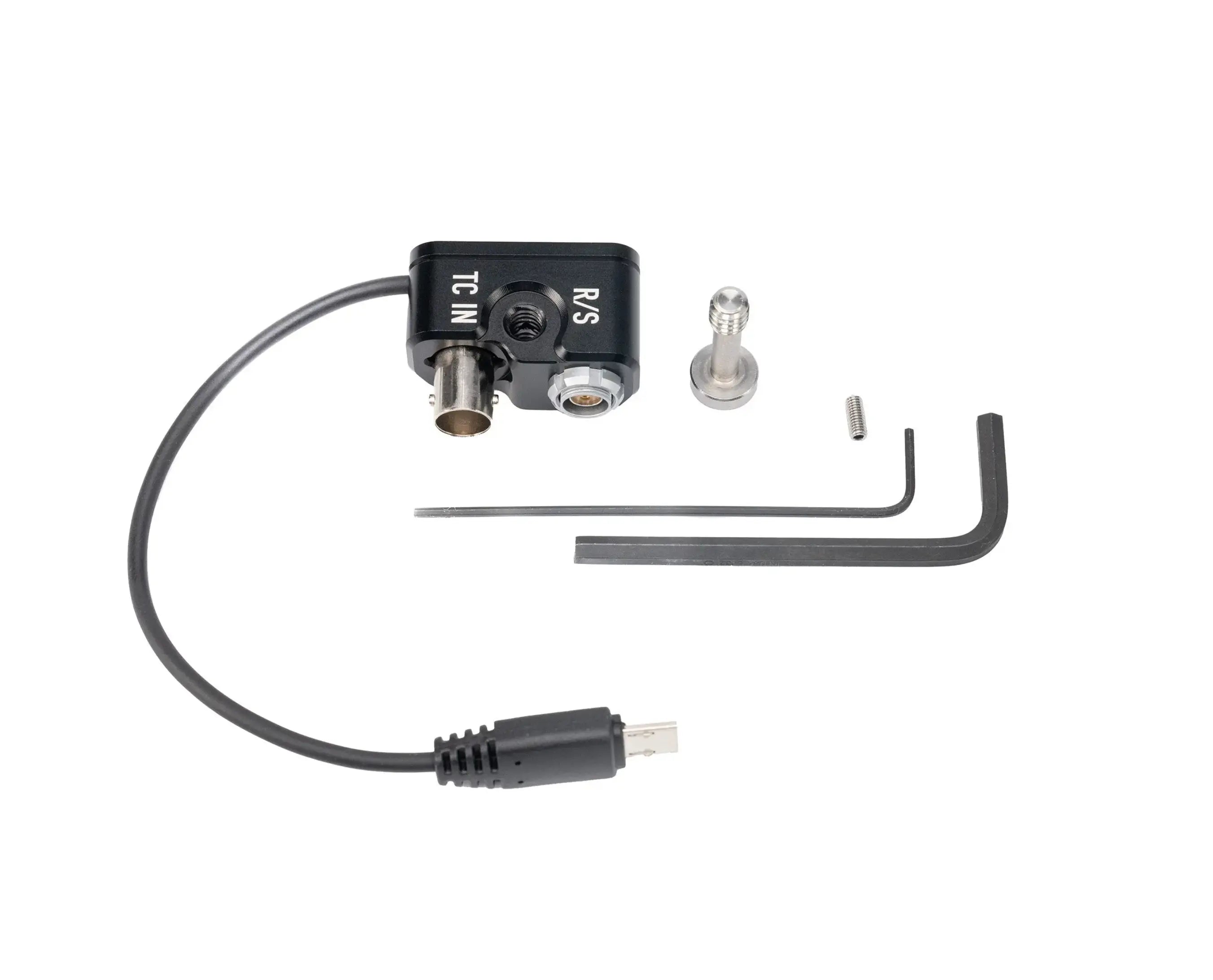

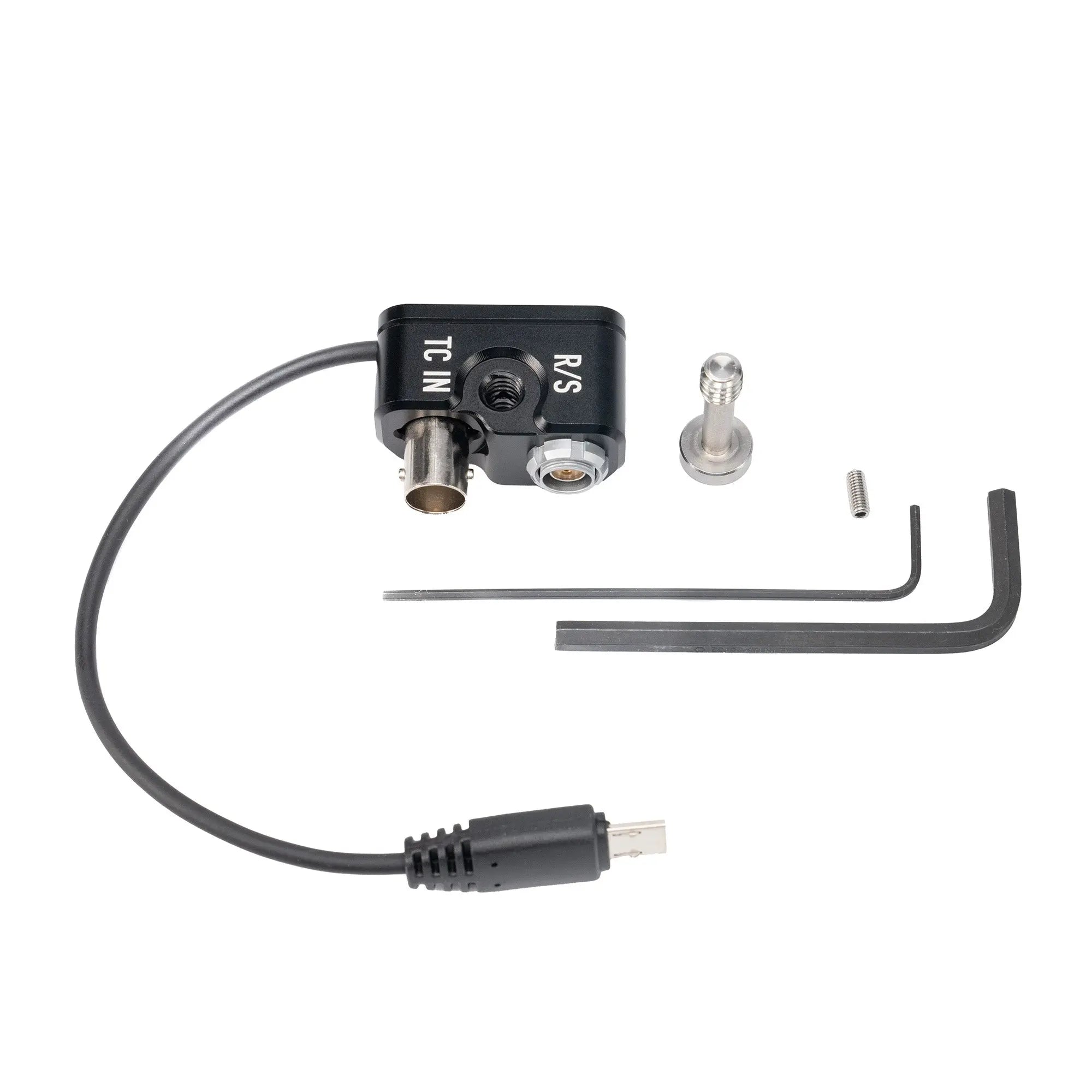

Features for TC-R/S BNC version:

BNC Timecode IN

Fischer 3 R/S port (pin 1 = Ground, Pin 2 = N/C, Pin 3 = R/S

6" Multi-terminal cable built in

1/4-20 through hole for mounting

2x M3 threaded locating pin holes with spacing for ⌀15mm and ⌀10.4mm(ARRI) standards

Includes 1x 1/4-20 mounting captive screw and 1x removable locating pin 1.5mm

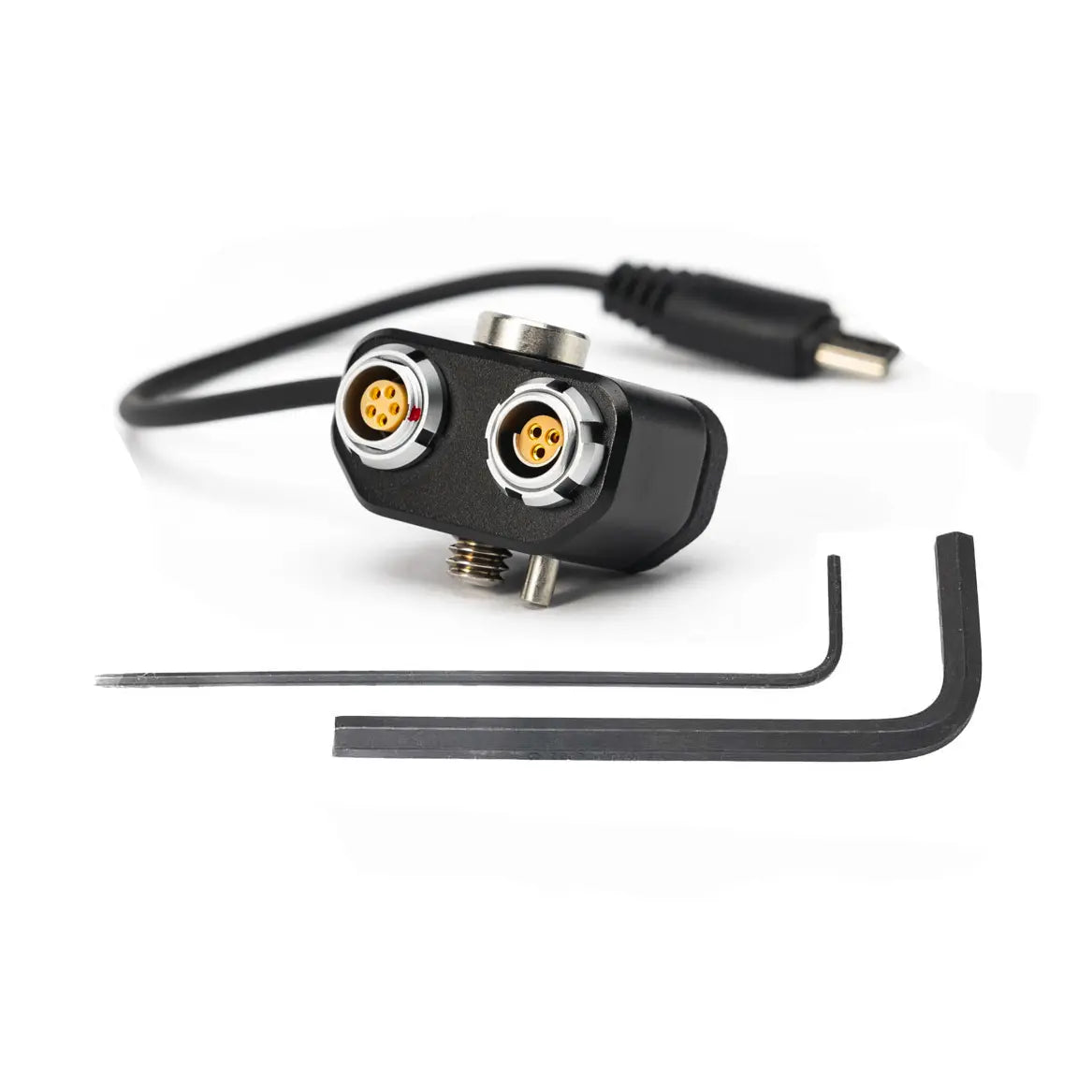

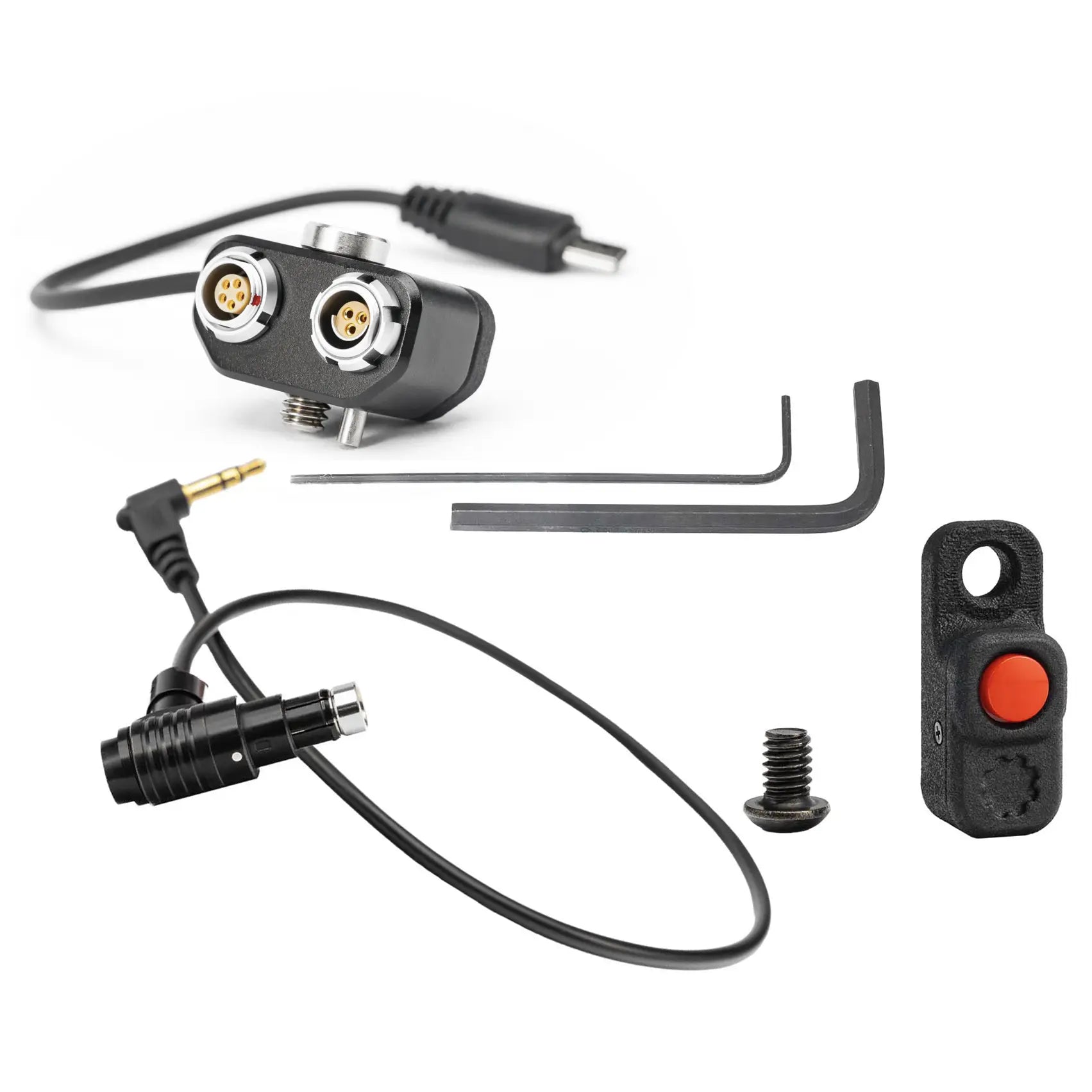

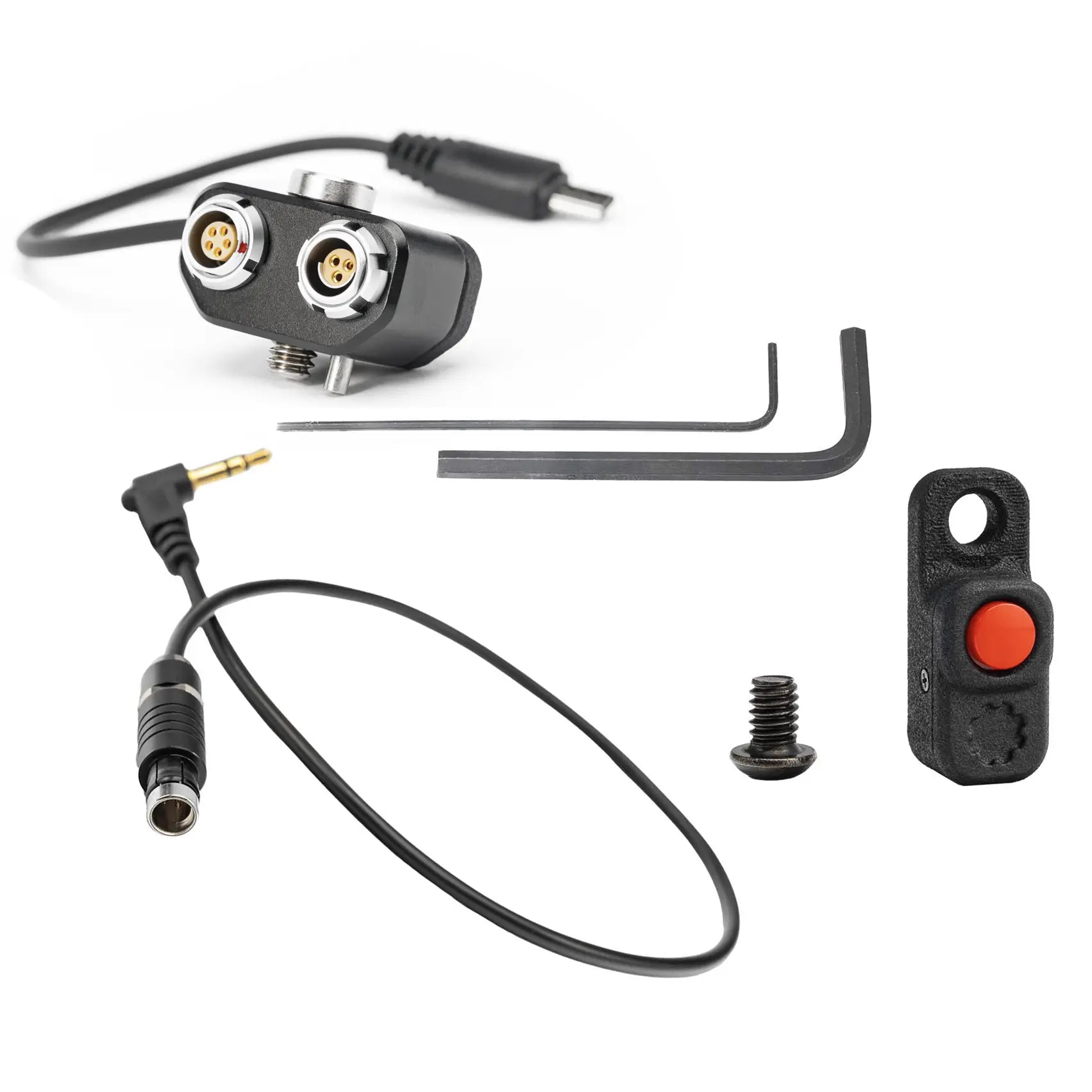

Features for TC-R/S 5pin version:

5pin 0B Timecode IN port

Fischer 3 R/S port (pin 1 = Ground, Pin 2 = N/C, Pin 3 = R/S

6" Multi-terminal cable built in

1/4-20 through hole for mounting

2x M3 threaded locating pin holes with spacing for ⌀15mm and ⌀10.4mm(ARRI) standards

Includes 1x 1/4-20 mounting screw and 1x removable locating pin 1.5mm

Size: L=1.3" x W=0.7"  x D=1"

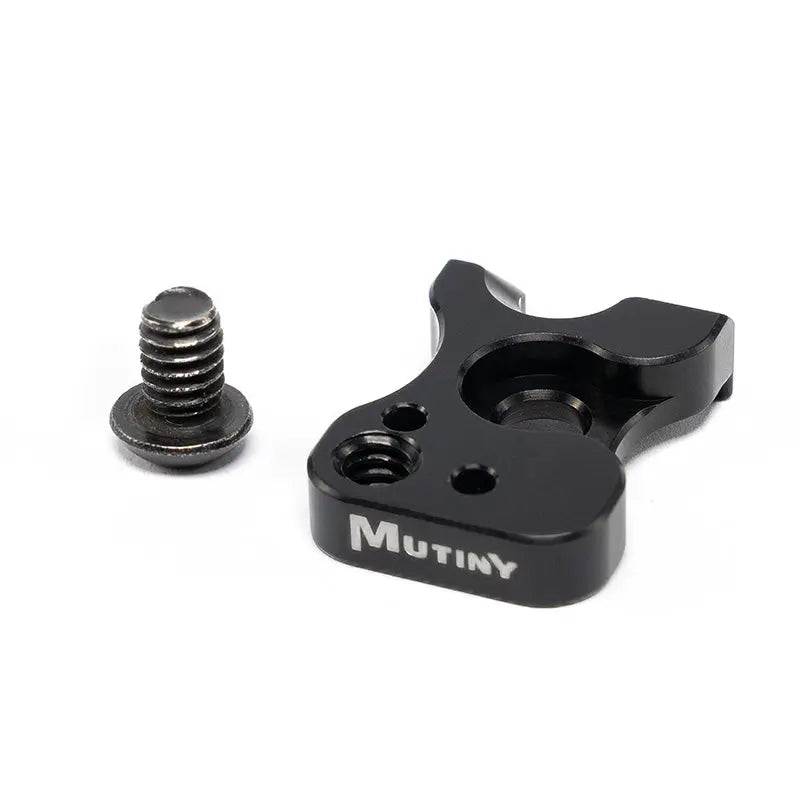

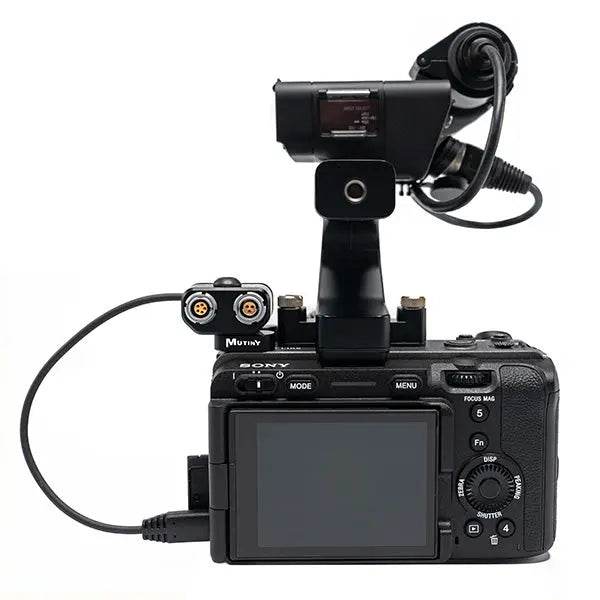

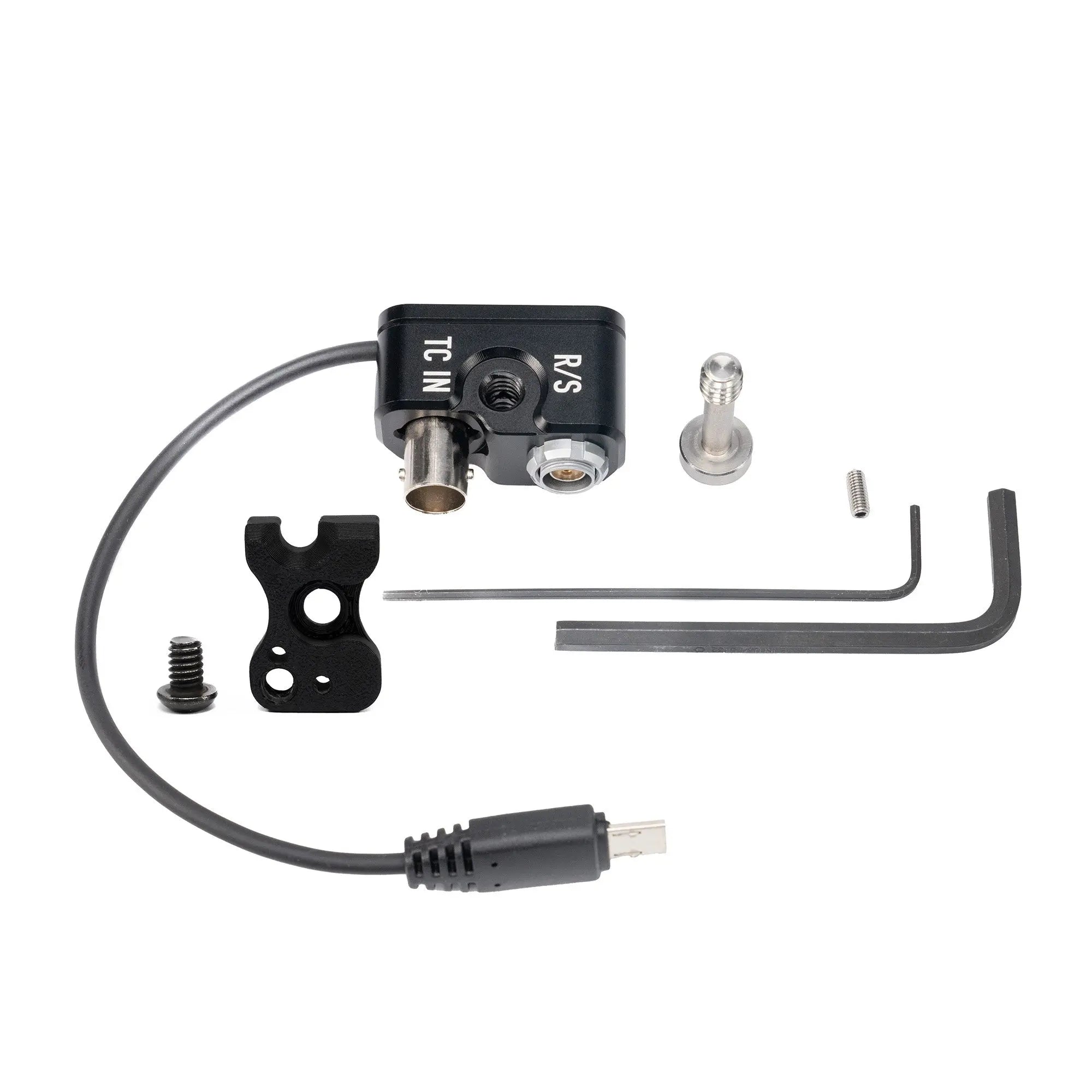

Optional is our TC-R/S Mini mounting plate for if you want to mount directly to the camera body and not a cage.  This mount allows full use of the XLR and standard  handle and can orient two ways.

For Timecode Change your FX3 / FX30 / A7S III Menu Settings to:

1) In the Sony Menu select TC/UB then Timecode Run and select Free Run, and Time Code Make to Preset.

2) Set your Timecode device and camera to the same frame rate

3) Connect your Timecode device (make sure you are outputting timecode and using a cable that is TC device ---> Camera) to your FX3/30 multi-terminal (multiport USB)

For R/S Change your FX3 / FX30 / A7S III Menu settings to:

Menu -> Setup -> Operation Customize -> Rec w/Shutter -> On.



MUTINY

View full details

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
K.
Great device, works as advertised

Does what it says, only a minor complaint. I have 5pin timecode connecters that are specifically made to have a 90º turn so they can fit on an ARRI Alexa Mini. When I try to use them so I don’t have long straight 5pin sticking out the side of my FX3, the 90º part comes across the R/S connecter blocking it. It might be nice to have it clocked in a different direction (or maybe I should just live with the straight one and shut my pie hole :)
